Capability to switch connection of 4 cameras remotel
Remarkable increase for video / voice distribution system configuration flexibility
using LsBox series.
[Front panel]
|
[Rear panel]
|
| Dimension |
Main unit size |
(W)132 mm X (D)180 mm X (H)44 mm * excluding protrusion |
| Main unit weight |
Approx. 800g |
| Power supply size |
(W)58 mm X (D)95 mm X (H)34 mm * excluding protrusion |
| Power supply weigh |
Approx. 250g |
| Price |
Open |
 |
 |
 |
|
LsBox-4CS functions and features
Basically LsBox is compliant with 1 camera, but upgradable for 4 cameras in combination with camera switcher.
Possible to switch manually at client side, also possible to program automatic scanning software.
- Camera switching :
Capable of stand-alone method of automatic switching responding to sensor input, through FA program, manual / automatic switching / periodic scanning by client, etc.
- Camera control : 2 units
By using RS232C terminal on LsBox front panel, camera contron (panning, tilting, zooming) is possible up to 2 units camera
- 2 camera control
Controllable (panning, tilting, zooming) up to 2 cameras by using RS232C terminal on LsBox front panel
- Effective only on camera screen selected, for camera control, recording, video sensor, motion sensor, etc.
- External dimensions : identical to those of LsBox
Possible to use by stacking like [Fig. 1] at left
- Built-in power supply adapter
Supplying 5V power supply of LsBox
- LED display of camera input selected at front panel
|
[Fig. 1] Example of switcher configuration
(Upper) Switcher (Lower) LsBox
|
|
|
|
|
|
|

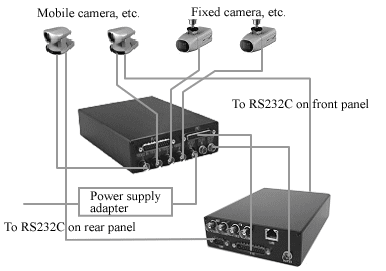

Connection with LsBox
|
