Video compression / transfer unit LiveServer
Overwhelming price-performance powered by the technology developed for monitoring system
|
[LS512,LS514]
|
| Video input |
Channel |
1 channel |
Camera
control |
Number of cameras controlled |
1 unit (connectable up to 4 units) |
| Function |
Function to designate camera for control |
| Signal |
RS232C |
RS485 |
| Terminal |
D-Sub 9Pin |
D-Sub 9Pin socket. |
| Applicable camera |
|
Canon
|
:
|
VC-C4 , VC-C4R
VC-C50i , VC-C50iR
|
|
Sony
|
:
|
EVI-G20 (built to order)
|
|
|
Mitsubishi
|
:
|
CIT-7500
|
|
Terry
|
:
|
MDO-1100
|
|
Hinox
|
:
|
VTC-401 (built to order)
|
|
| Dimension |
Main unit size |
(W)132 mm X (D)180 mm X (H)44 mm (excl. protrusion) |
| Main unit weight |
800g approx. |
| Power supply size |
(W)58 mm X (D)95 mm X (H)34 mm (excl. protrusion) |
| Power supply weight |
250g approx. |
| Price |
Open |
LsBox-S512(RS232C), S514(RS485) function / feature
* High video compression by KAM method
* Video input : 1 channel
* Bi-directional Video / Voice communiction
* Compact, approx. 1/8 against previous
LiveServer model, * excl. power supply unit
* Fanless, shielded case, no motor driven parts
* Low power consumption
(Approx. 10W max., 1/10 approx. against previous model)
* Wide temperature range of performance
* Capable of monitoring by PDA |
LsBox (left) and previous model (right)
|
| Client function |
* Bi-directional video/voice communicaton
* Video / voice output to existing TV and playback directly through
input terminals
* Client device without PC, no troublesome operation
* Storing the settings, even power-off by mistake,
resuming automatically at power On Also resuming automatically
against instantaneous power failure |
| PC for setting |
* Control all the client terminals through LsBox
by a PC connected to network
* Following settings, changes are possible :
connection/disconnection/altering connection
target/screen size/screen position/screen quality
notation in Chinese characters/rebooting
* Remote setting possible without engineer at local site
* Setting PC to be connected only at setting changes
while no connection required normally |
| Mail distribution function |
* Mail distribution function regarding designated event
Distribution of 255 mails max., flexible choice of
event combination, compliant with DNS (designating mail server URL) |
| NTP function |
Automatic time adjustment function at preset interval |
| Infra red remote control function |
* Controling client device with infra red remote
controller like TV remote conteroller
* Following controls are possible :
Checking information (IP address, port, etc.),
monitoring function on each signal, I/O, serial port connection
information, firmware version,rebooting function, locking function,
prevention of careless operation, displaying connection
target information, camera control, etc. |
| Control function |
* Connection target I/O port control
* Connection target serial port control
* Connection target camera control
* Simultaneous display sharing screen by own camera,
with target receiver |
| Relaying function |
Following relaying is possible by relaying function of information
received, to other :
* Connection target[1] input, to own output
* Connection target[1] input, to connection target[2] output
* Own input, to connection target[1] output
* Relaying serial port
* Receipt at connection target[1], to own sending
* Receipt at connection target[1], to o connection target[2] sending
* Own receipt, to connection target[1] sending, etc. |
| Video distribution function |
Possible to select mode for distributing the same video to multiple
clients. Transmitting FPS (frame per second) will increase, due to
less load to CPU for compression |
| Voice sensor function |
Sensor function by voice, set in advance |
| Multiple camera compliant |
* Compliant with 2 cameras (by switching) LsBox-S522(RS232C),
S524(RS232C)
* [Option] 4 camera swtcher LsBox-4CS |
[Remark]
Even in the case of using LsBox for client device, need to connect camera or such device with equivalent capability to supply synchronizing signal to video input terminal

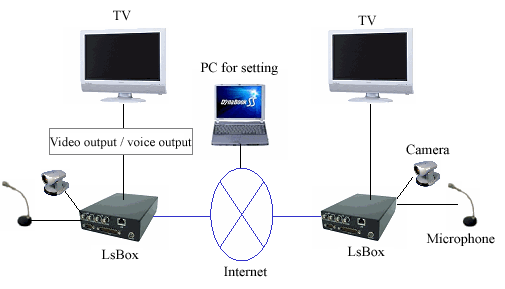

Example of application)
Bi-directional video / voice communication between 2 sites through internet
* Expandable to 3 sites, subject to decrease of frame number for transmission by number of LsBox connection
|
